Reinforced Mesh for Coating Swimming Pools

What is the Armed Screen?

The Reinforced Screen for swimming pools is also known as Reinforced Liner or reinforced PVC membrane and is part of the pool coverings regardless of the structure of the pool itself. It consists of a high-strength polyester layer sandwiched between two heat-welded PVC (polyvinyl chloride) layers.

With an average thickness of 1.5 cm (100mm / 150mm) and its characteristics make it a waterproof and very resistant swimming pool coating, with a 10-year factory guarantee in the classic range, but there are screens on the market with 20 to 30 years already applied.

It is supplied in rolls of 25 meters by 1.65 meters, to be vulcanized in several pieces directly on the walls and bottom of the pool.

Reinforced mesh for lining swimming pools can be treated in a variety of ways:

• Non-slip treatment to protect underwater stairs and beaches

• Fungicide and antibacterial treatment to prevent the proliferation of microorganisms and algae.

• Anti-UV treatment to limit sun discoloration.

Why should you choose Tela Armada as a swimming pool covering?

It is true that there are several swimming pool coating solutions such as tiles, mosaic tiles, fiber, epoxy paints, etc.

• Reinforced PVC membrane It is suitable for all shapes and sizes of pools. . Unlike Liner, which comes in the form of a custom-made pool bag, while the reinforced mesh is cut and vulcanized on site. Thus, they can be adapted to all types of pool: free-form, lap, infinity pool, etc.

• Reinforced PVC membrane seal all pools . It can be placed on any support and therefore can waterproof all types of pools: wooden, metal, concrete structures, etc. In renovation or remodeling, it is particularly suitable for repairing watertight problems in all swimming pools, but especially used in tiled or tiled pools.

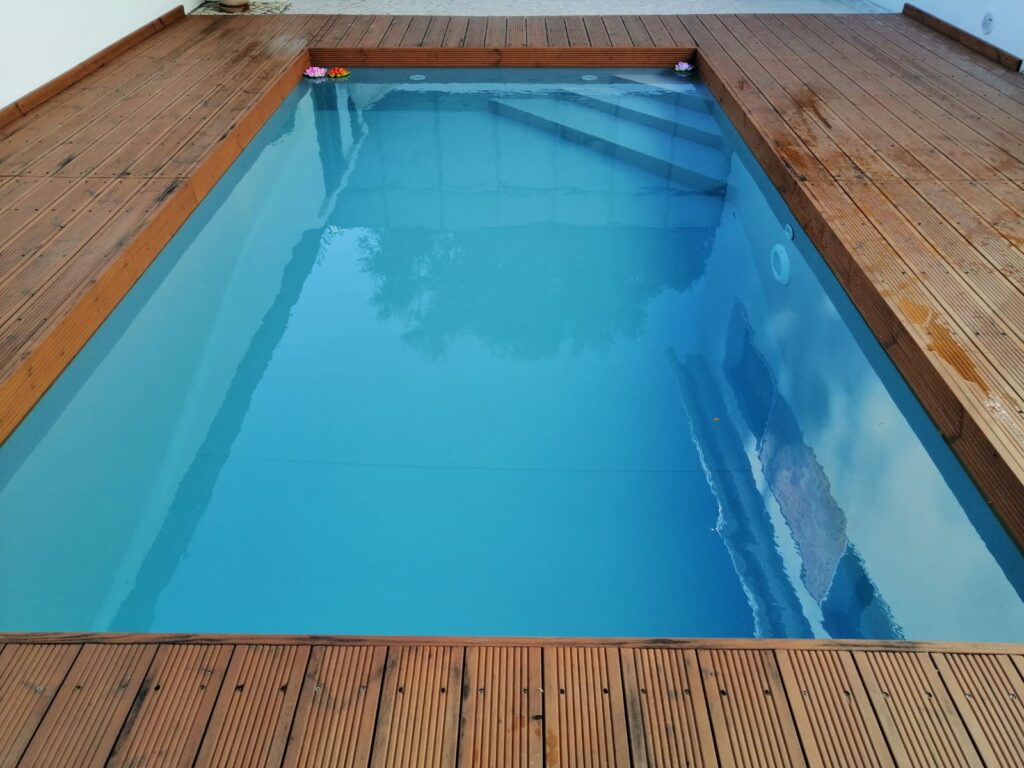

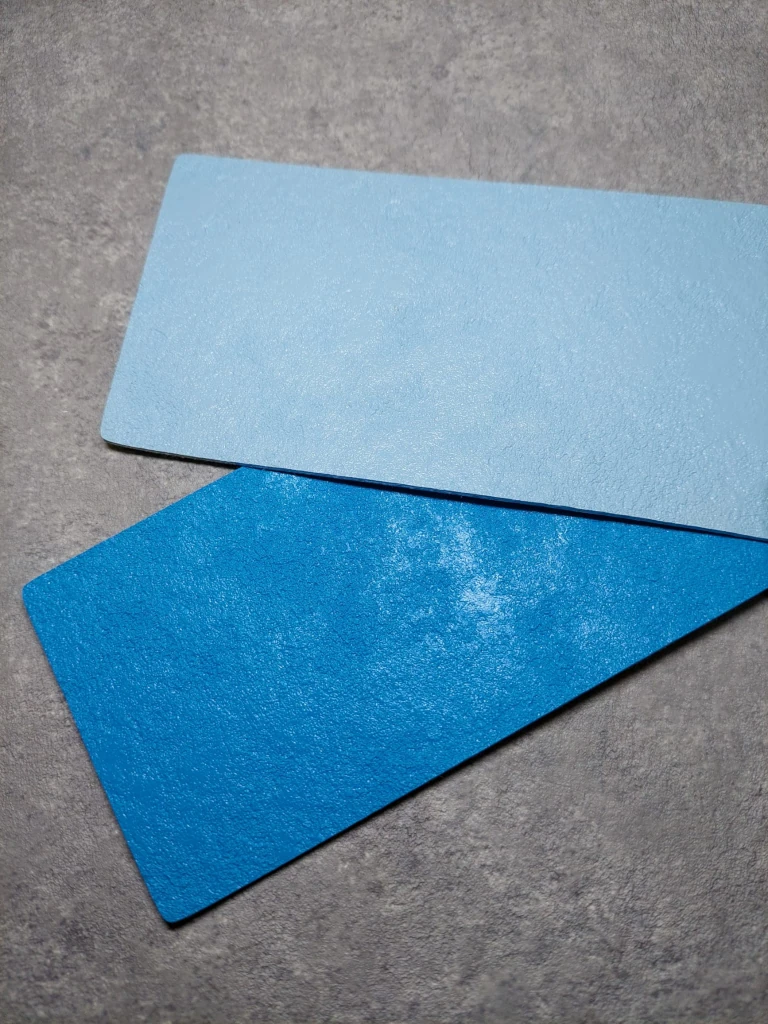

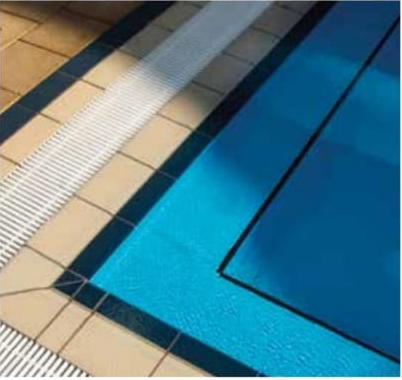

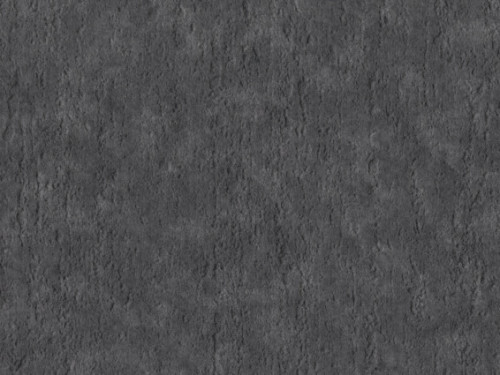

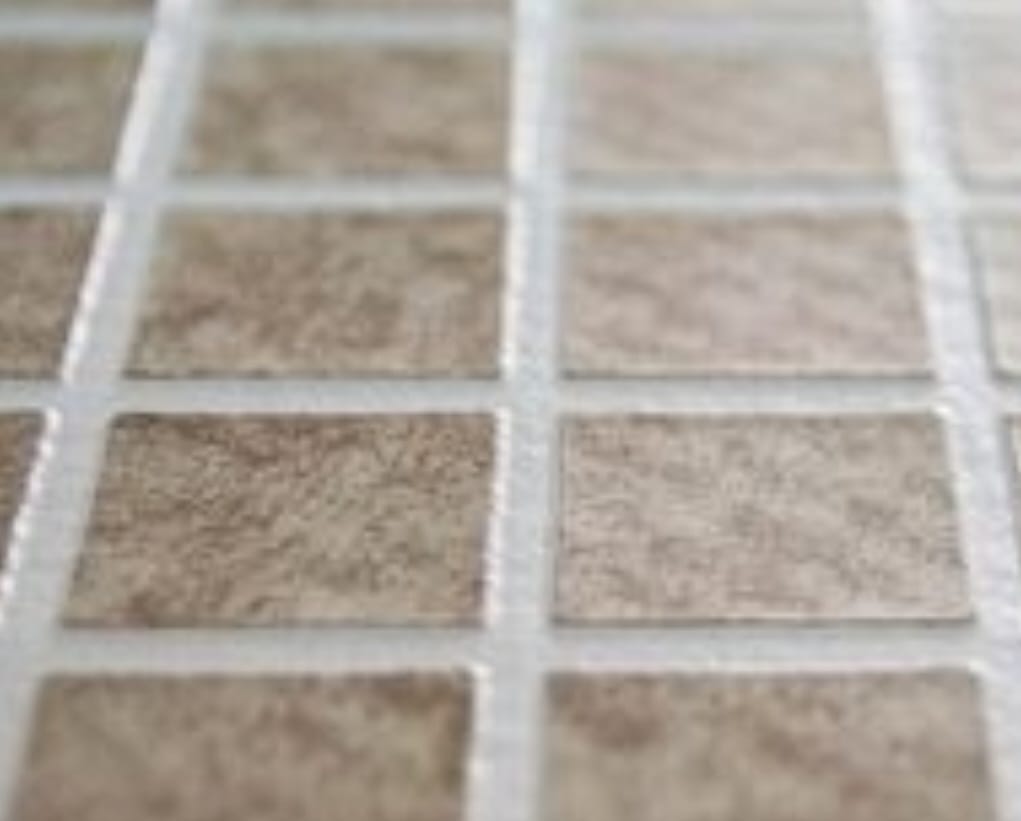

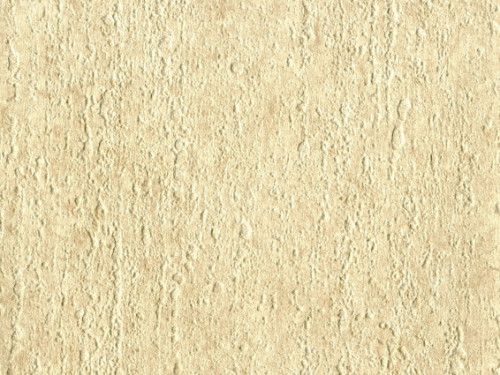

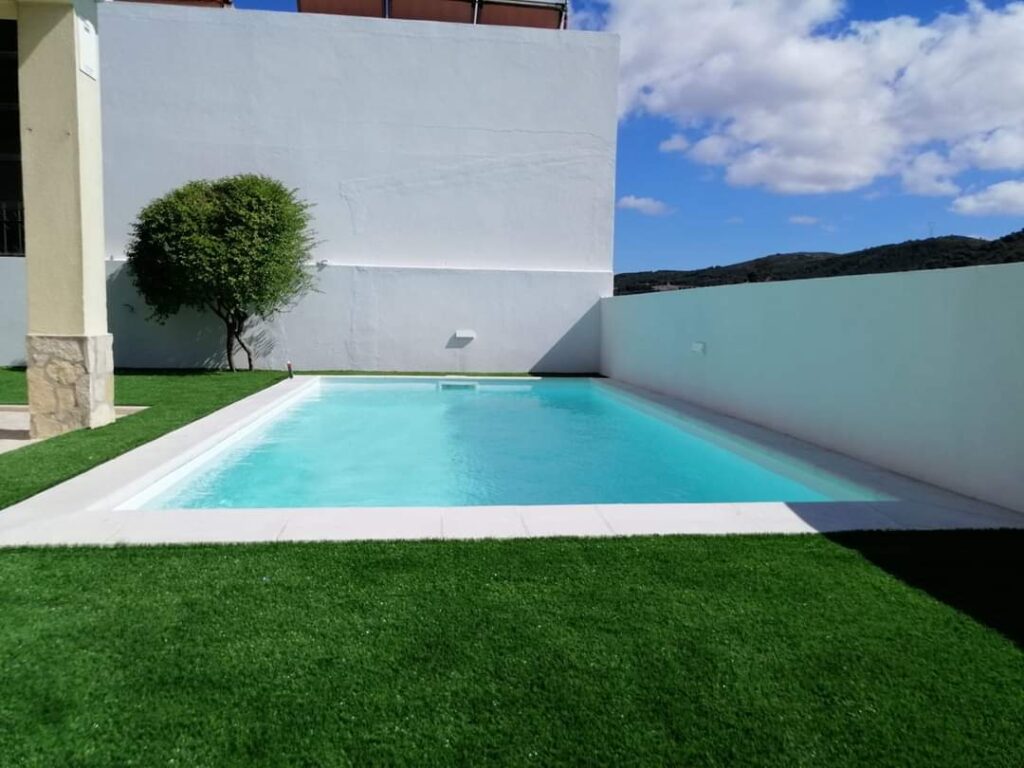

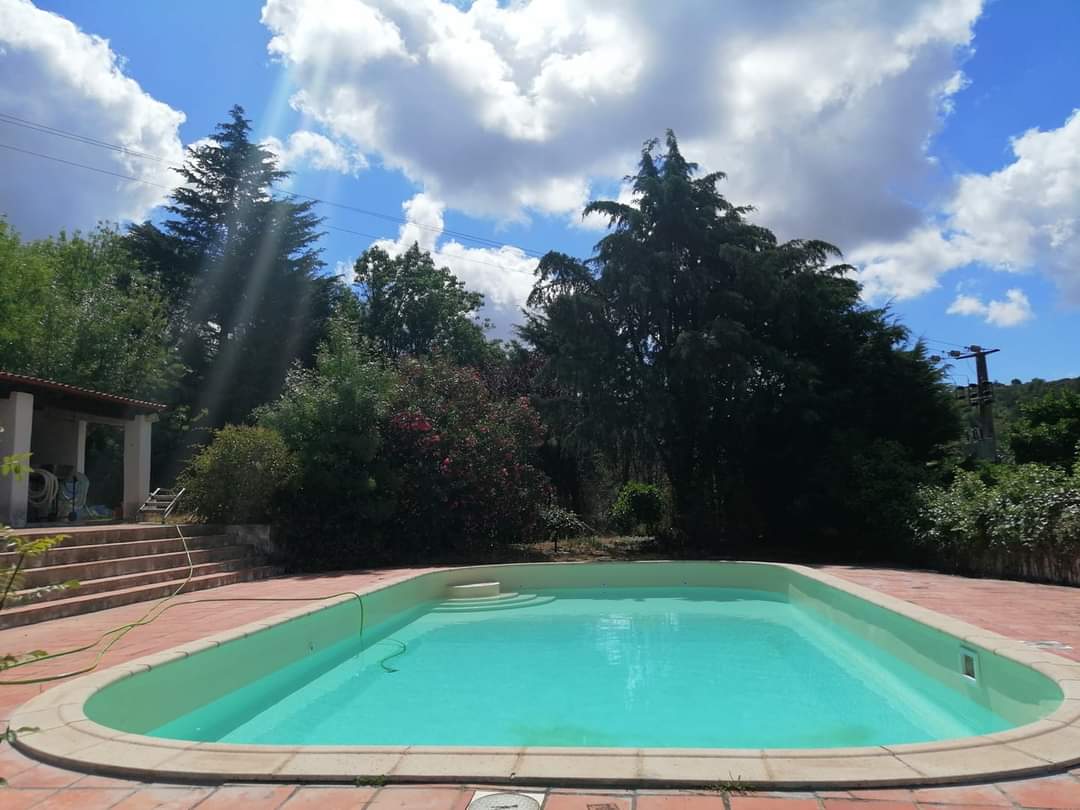

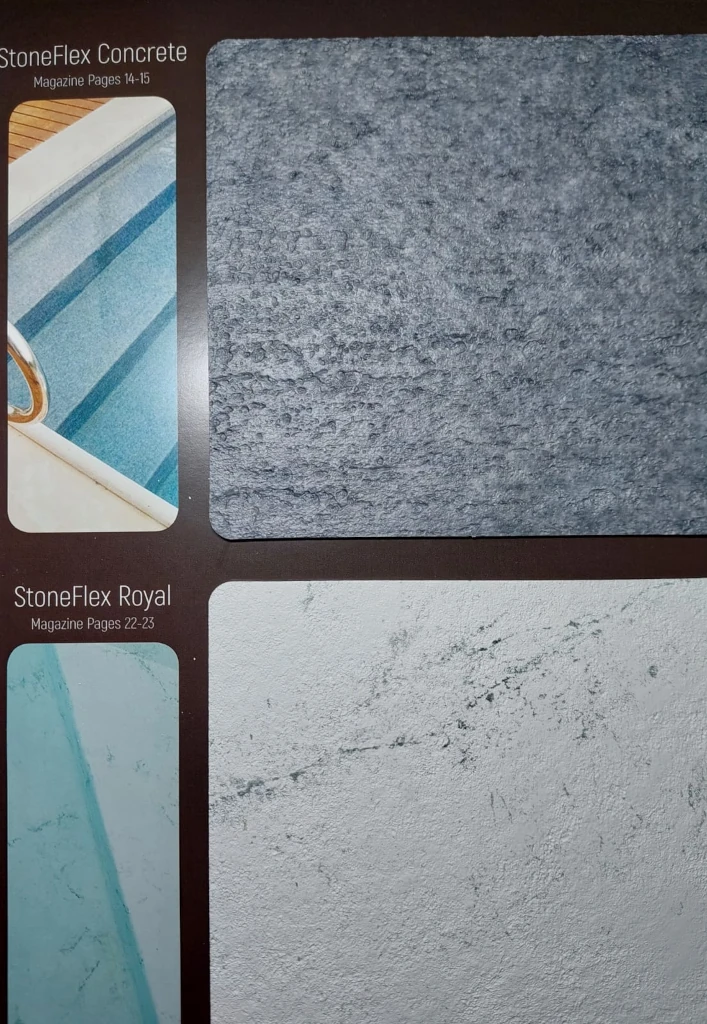

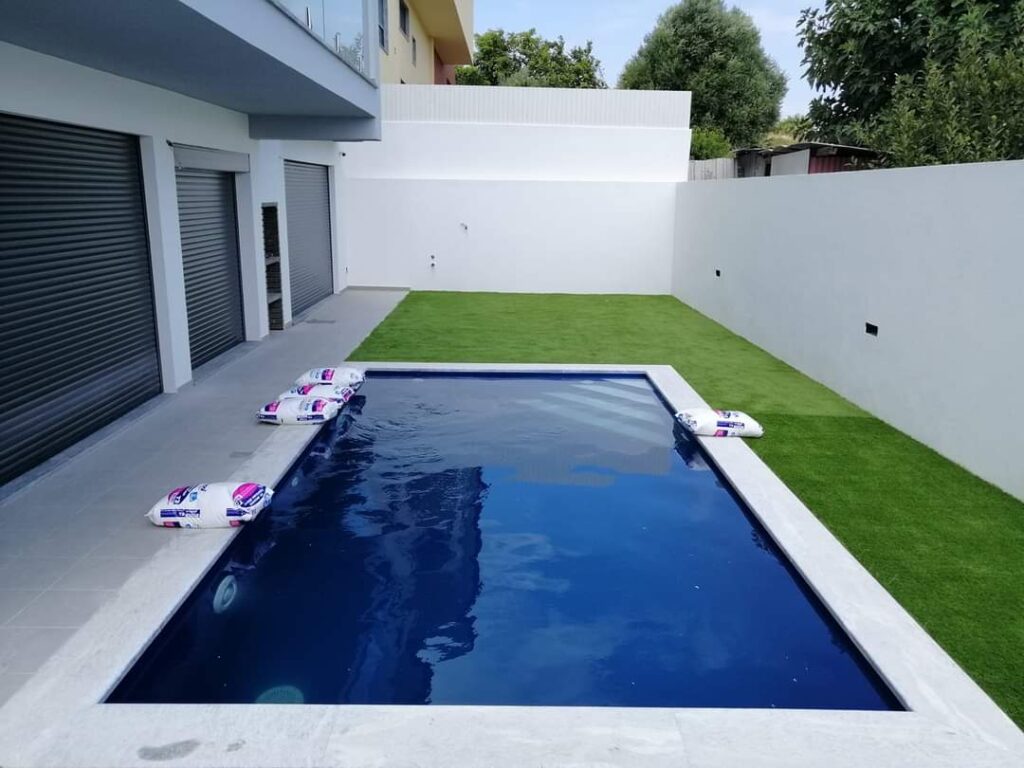

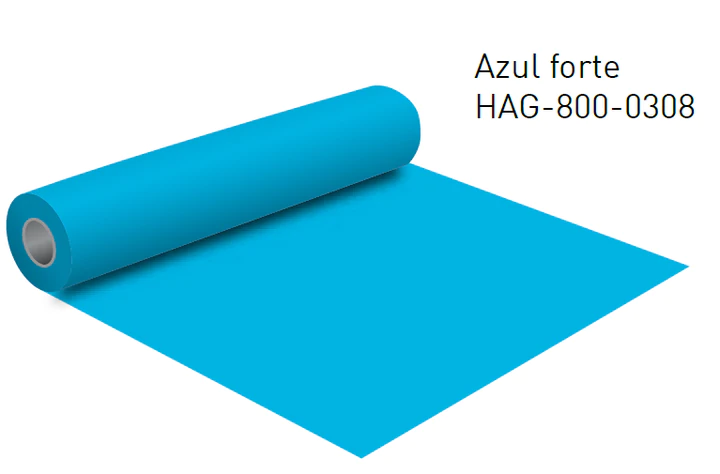

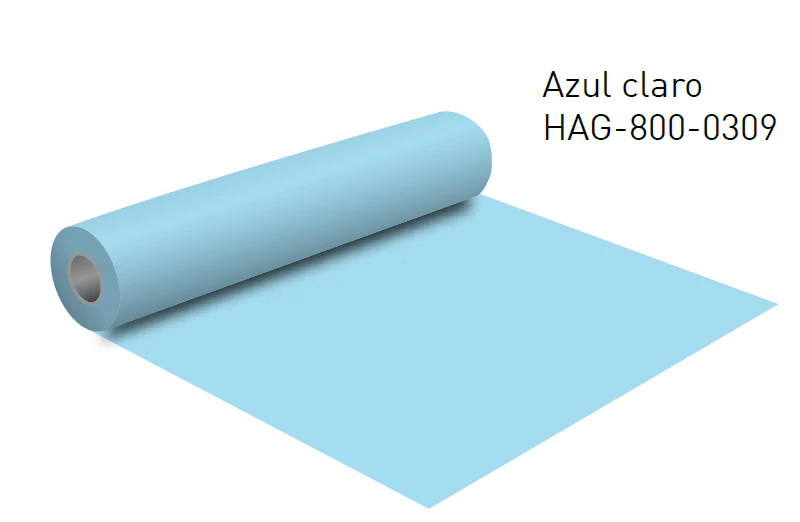

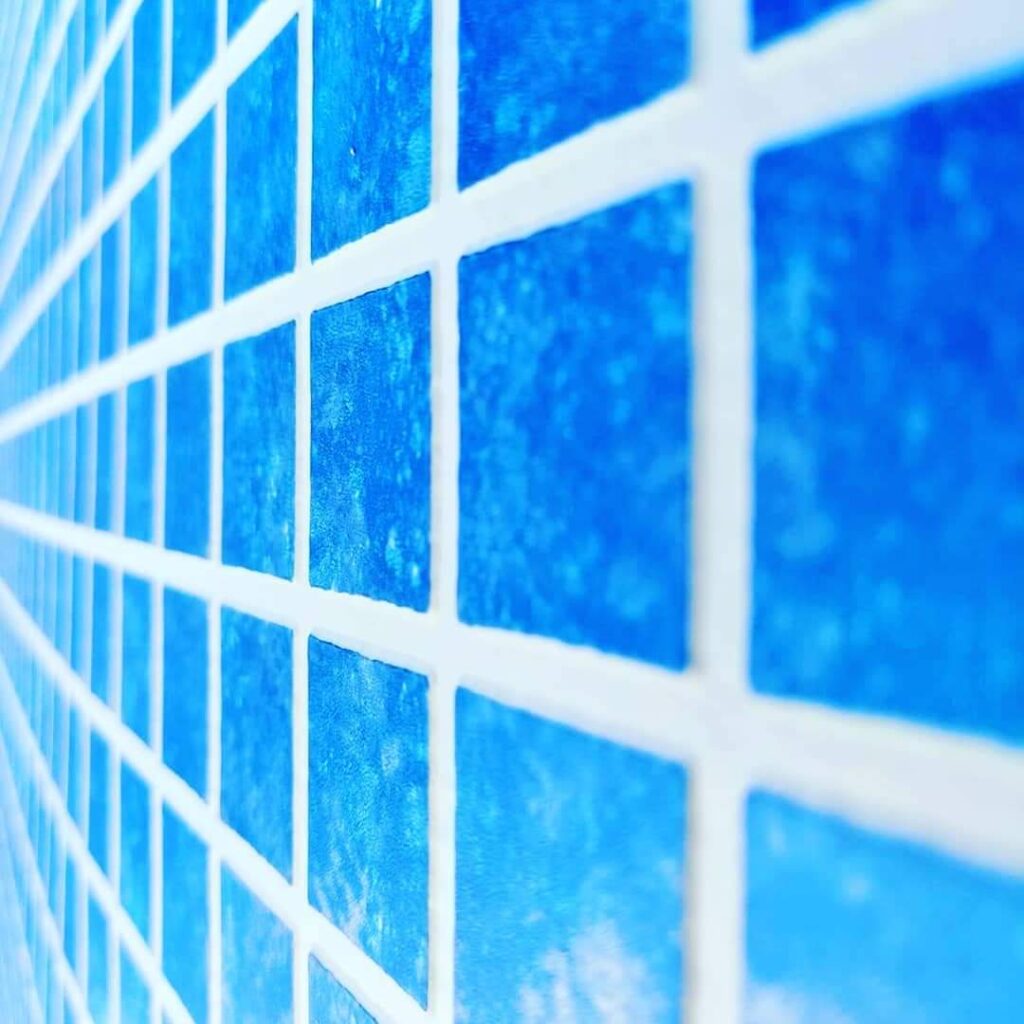

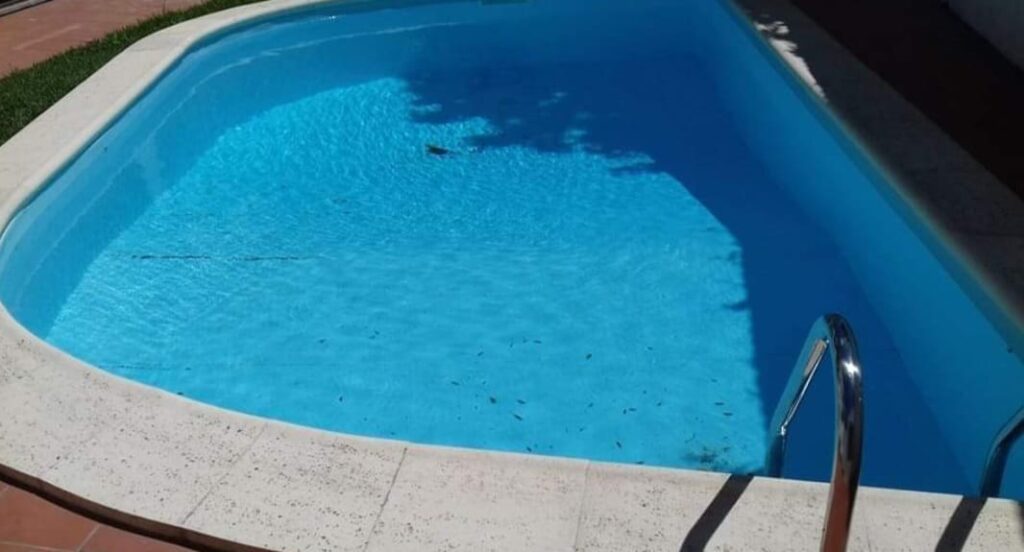

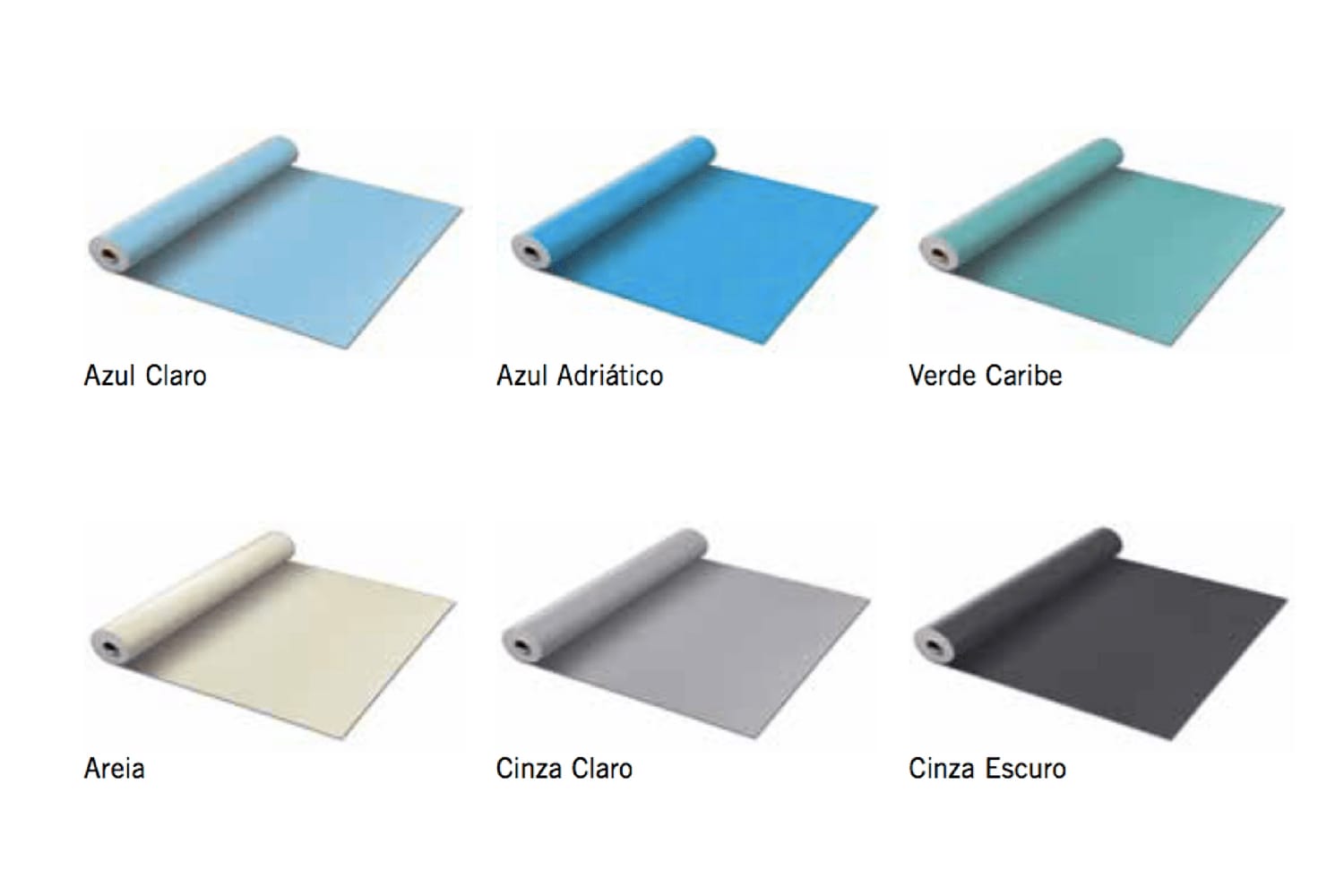

• Reinforced PVC membrane guarantees a beautiful finish to the pool . It is available in many solid colors (white, gray, light or dark blue, sand), printed (mosaic, marble or imitation stone) or 3D embossed printing. The best solution for lining swimming pools.

Advantages of Armored Screen

This versatile coating has many advantages:

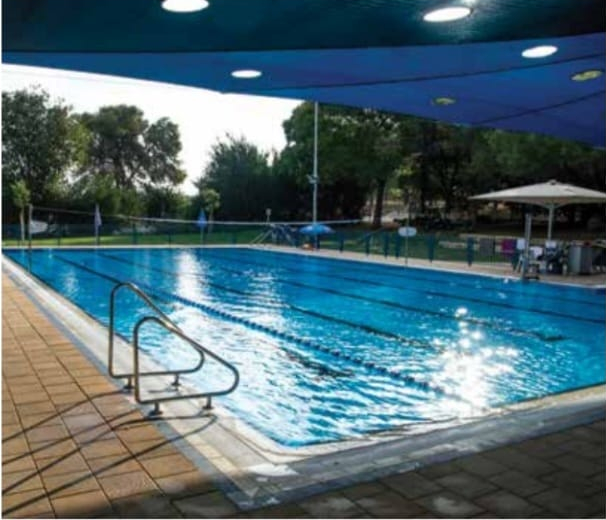

• The Armada Screen is very resistant. Therefore, it is recommended for public or private pools that receive many users;

• settle down quickly;

• Supports Hot water. It is the ideal coating for indoor pools heated to over 28° all year round;

• AND very easy to maintain thanks to the antifungal and antibacterial treatments implemented during its manufacture.

Disadvantages of Armored Screen

• Purchasing the membrane is a little more expensive than a classic tablet pool liner;

• It is essential to be installed by a professional . This is an additional cost compared to buying the membrane alone, but it is a guarantee of the quality of the installation and a guarantee in case of problems;

• If the welds are not made according to standards and by a professional may cause a water leak in the pool;

• AND easily repaired, but once its useful life has ended, the reinforced PVC membrane must be completely replaced;

• Poorly performed water treatment can damage it: chlorine or bromine in direct contact and a pH less than 7.

How is the Armed Screen installed?

The installation seems simple, but there is technical knowledge involved for its correct placement. Laying the reinforced pool membrane is carried out as follows:

• Cleaning and disinfection of the pool, which must be perfectly clean;

• Possible placement of a geotextile felt. It is especially indicated when the floor or walls of the pool have irregularities;

• Installation of the membrane on the walls;

• Fixing the membrane at the top of the pool on a rail under the edge or on a special sheet with a laminated PVC strip;

• Placing the membrane on the bottom of the pool;

• Modeling and installation of the membrane on the stairs.

The welding between the membrane strips is carried out by thermal melting with a hot air torch or solvent.

When the Reinforced Screen is installed in a concrete pool, it must not be waterproofed. Despite being sealed, there is always a phenomenon of exudation by capillarity between the support and the membrane. This very small amount of water must be allowed to run off.

What is the price of the armed screen for your pool?

The price of the armed screen can vary a lot!

We have 6 ranges of fabrics, from smooth, printed, textured and reinforced. Depending on the range, the price and warranty change.

Add the correct calculation of the areas of the pool, where there may be waste that the screen gives, and in short, there are several factors that must be taken into account for the correct calculation of the covering in wire mesh that you need.

Take the measurements of your pool (length, width and depths), some photos of the pool, and give us your data (name, location, telephone and e-mail) and send it to us. With these data we can perform an analysis and send you a quote (1 Free).

However, if you wish, we can send a technician to the site to take the measurements and then send you a quote. The technician's travel is paid (20€ including VAT), which is deducted from the budget when awarding the work.

Armed Screen Ranges

---

---

---

---

You can also check the ranges of screens on your smartphone in the APP using the Haogenplast APP for your device.

Shall we build your pool?

We build your new Pool in Cement Blocks or Polystyrene Blocks and we also have Wooden Pools available.
